When it comes to repairing the Antminer S19XP hashboard, understanding the S19XP voltage flow is absolutely essential. Bitmain Antminer hashboard designs vary greatly between models, and the Antminer S19XP is no exception. Unlike Whatsminer models—which follow a relatively consistent voltage structure across versions like M30 and M50—the S19XP voltage flow is unique and requires specific knowledge.
Even if someone has prior experience with Bitmain Antminer repair, without a clear understanding of the S19XP voltage path, working on these hashboards can be very challenging.
Understanding the Domain Structure

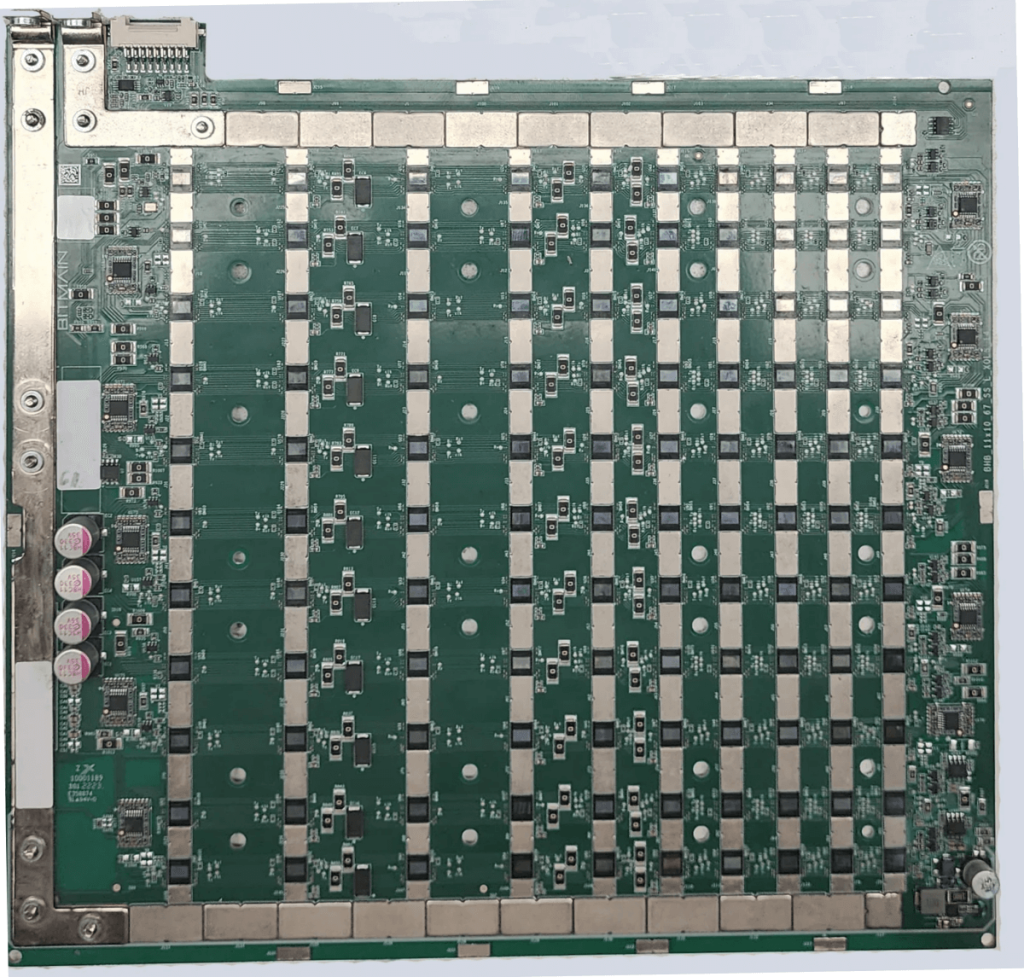

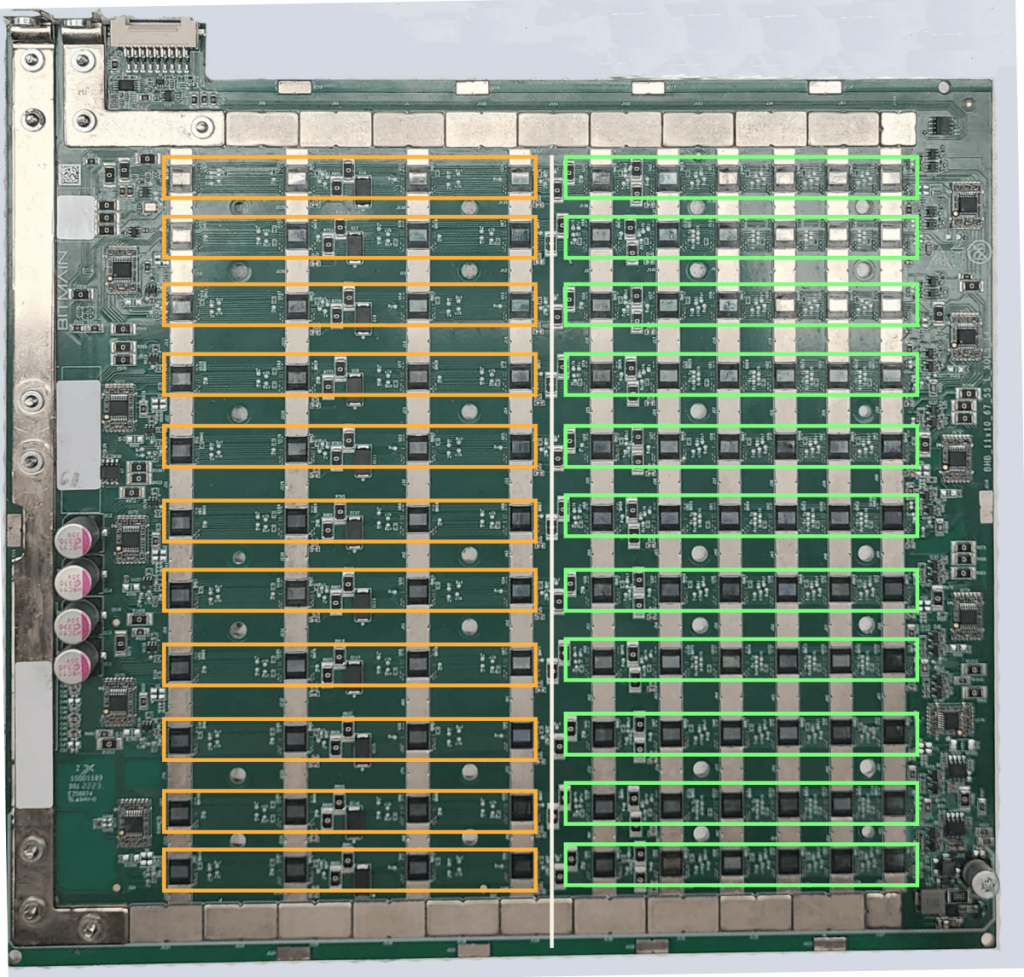

The Antminer S19XP hashboard is divided into 11 domains, each consisting of 10 chips. These domains are essential for organizing how power flows and how signals are distributed across the board.
LDO Configuration per Domain

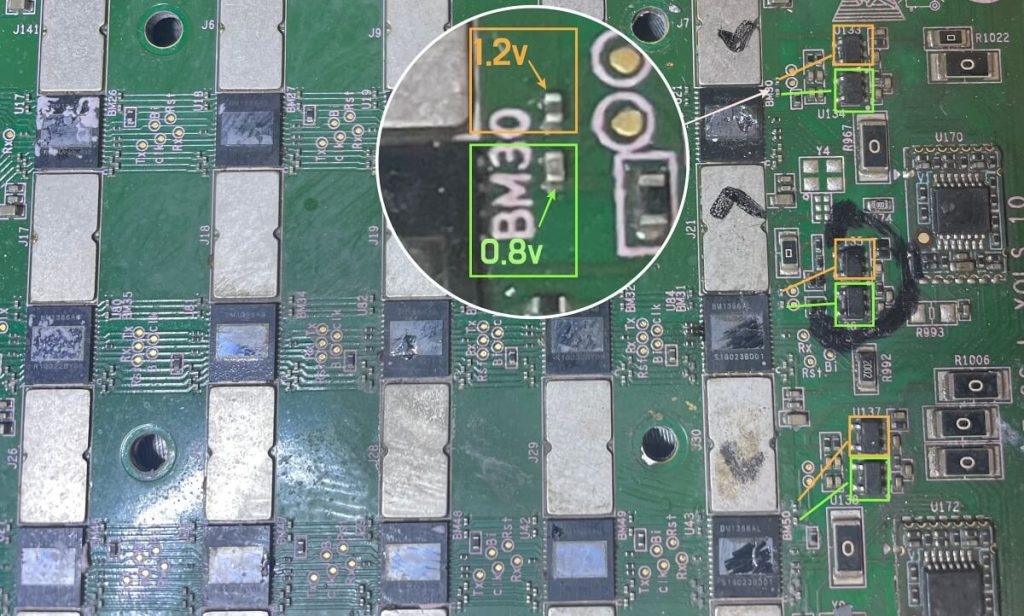

Each domain has three LDOs (Low Dropout Regulators):
- One on the left side of the domain
- Two on the right side

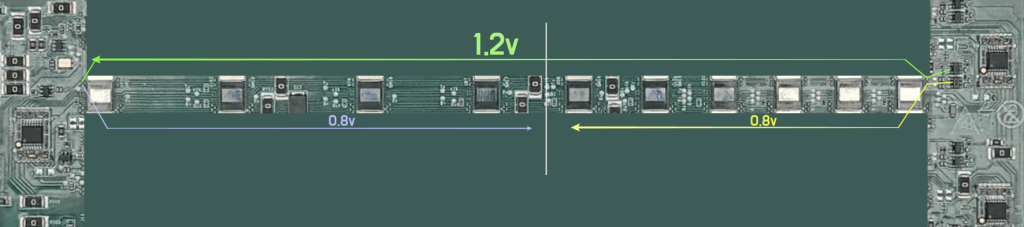

LDO Voltage Output and Chip Coverage
- The left LDO provides 0.8V to the 4 chips located on the leftmost part of the domain.
- The upper right LDO outputs 1.2V and supplies power to all 10 chips in the domain.
- The lower right LDO provides 0.8V to the remaining 6 chips on the right side.
Understanding this voltage distribution is key when diagnosing faulty chips or voltage drop issues.
Diagnosing Low Voltage on the Hashboard
If you notice one of the chips has unusually low voltage, always trace the voltage flow first.
For example, if the entire domain’s 1.2V line is reading 0V, it’s likely that the 1.2V LDO is faulty, or the final chip in the domain—located right next to the 1.2V LDO—is the issue.
A proper understanding of these three LDOs and their specific coverage across the chips is not just helpful—it’s crucial for successful Antminer S19XP repair.
Final Thoughts
Whether you’re diagnosing a short, checking for faulty components like a capacitor or crystal oscillator, or simply trying to understand why the board won’t power properly, having a strong grasp of the S19XP voltage system is the foundation of effective Bitmain Antminer s19xp repair.
